With the aroma dosing system, the users of steam baths
or adventure / experience showers can select between
different fragrances. Pleasant fragrances for steam bath
and shower ensure with Select.Arom pure relaxation at
the highest level. In the cubicle it can be chosen between
two, three or four fragrances at the touch of a button.

The aroma dosing system is enabled as soon as the system
voltage is active. Afterwards the chosen fragrance can be
retrieved. The selected fragrance is quickly distributed
with the steam and converts the steam cubicle in a fascinating
world of scents. To distribute the aromatic fragrance
in adventure / experience showers, the fragrance
solution dissolves in the shower water.

Since only one fragrance can be chosen, the dosing system
Select.Arom memorizes which fragrance is activated and
prevents automatically that other fragrances stream out
at the same time and an unpleasant mixture results.

The aroma dosing system Select.Arom consists optionally
of two, three or four dosing pumps, whereby the number
of selectable fragrance depends on the number of pumps.

• Select.Arom 2K5 for two fragrances
• Select.Arom 3K5 for three fragrances
• 4K5 for four fragrances

These aroma dosing pumps are a special system for the
wellness and spa area. The bellow dosing pump comes
with a closed, splash-proof plastic housing. The drive is
via eccentric gear motor.
The aroma dosing system with bellow technology is for
the use in steam bath, Rhassoul and adventure / experience
shower and supplies the steam generator or the
shower with the fragrance solution. The aroma dosing
system Select.Arom is available in two voltage ranges:
230 V AC as CE version and 120 V AC with UL approval..

SKU B01-8011 Category


Function Select.Arom
The aroma dosing system receives the 230 V or 120 V AC
electrical voltage via steam bath or shower controller.
The fragrances can be selected by the request buttonin
the cubicle or shower, as soon as voltage is available. As a
fragrance selected, the aroma dosing system starts with
the cycle “Dosing” and “Standby”. This is repeated until
the runtime per fragrance is reached.
Subsequently the aroma dosing system enables the fragrance
selection, on which the same or a different fragrance
can be chosen via request button. The dosing
quantity, pausing time and runtime per fragrance is controlled
via DIP switch inside of the aroma dosing pump.
During the pausing interval no dosing takes place.

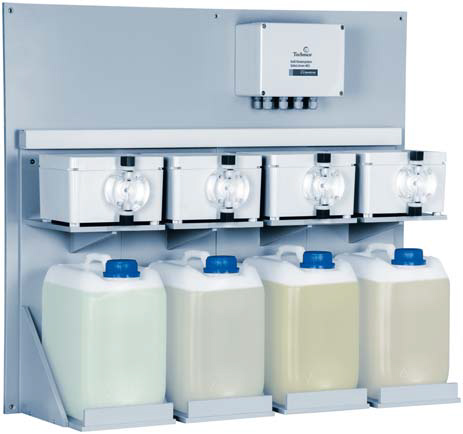

Scope of supply Select.Arom
for four fragrances

1 x Mounting plate
4 x Aroma dosing pump Select.Arom
4 x Injection nozzle 1/2“
4 x Self-venting cover for Kemitron essence container
4 x Bracket K05 for 3 or 5liter essence container
4 x Request button SteelSwitch
1 x Cover steel for four request buttons, engraved
1 x 1m Mains cord without mains plug
4 x 2m Request wire for request button
4 x 1m Suction hose with fine filter
4 x 2m Pressure hose
Everything that is needed for installation is included with

Additional information
Weight 48.00 kg
Dimensions 78.5 × 68 × 23 cm
Pump housing


Electrical connection

230V AC 50/60Hz

Power consumption


Start command via low voltage signal

5 – 24V AC / DC non-isolated for request button in the cubicle

Dosing quantity

0,5 – 8 ml / cycle, adjustable via DIP switch inside the housing

Standby time

1,15 – 20min / cycle adjustable via DIP switch inside the housing

Running time per fragrance

2 – 32min, adjustable via DIP switch inside the housing

Dosing volume


Delivery pressure

max. 5bar, absolute 4bar

Discharge head

max. 20m

Suction height

max. 1m

Dosing head
